A 5000 Series

Fully automatic.
Extremely flexible.

Powerful.
Extremely flexible.

The machine

The machine

Top Features

Top Features

Module

Module

All modules

All modules

A STREMA®

The all-rounder in
highest performance range.

The all-rounder in
highest performance range.

The all-rounder in
highest performance range.

The all-rounder in
highest performance range.

The all-rounder in
highest performance range.

The all-rounder in
highest performance range.

Flyer A5000

Top features
Outstanding features

Close-up of the two pre-stretch rollers and three-phase motors.

EFO 02 pre-stretching with SMART-Load

Dynamic pre-stretching via our two-roll pre-stretching system with individually driven three-phase motors. Minimal edge pressure thanks to electronic dancer bar position control.

Dynamic pre-stretching via our two-roll pre-stretching system with individually driven three-phase motors. Minimal edge pressure thanks to electronic dancer bar position control.

High-bay safe welding

High-bay safe welding

High-bay safe welding

Using the impulse welding process across the entire width of the film, the pallet is wrapped without any excess film and without coming into contact with the product.

Using the impulse welding process across the entire width of the film, the pallet is wrapped without any excess film and without coming into contact with the product.

Using the impulse welding process across the entire width of the film, the pallet is wrapped without any excess film and without coming into contact with the product.

Using the impulse welding process across the entire width of the film, the pallet is wrapped without any excess film and without coming into contact with the product.

Film weld seam with freshly cut film end without overlap.
Pallet on a turntable wrapper with graphic arrow elements indicating the rotational speed. Pallet on a turntable wrapper with graphic arrow elements indicating the rotational speed. Pallet on a turntable wrapper with graphic arrow elements indicating the rotational speed.

Automatic performance adjustment

Automatic performance adjustment

Automatic performance adjustment

The working speed adapts to the actual pallet volume - less wear and tear with longer, trouble-free operation.

The working speed adapts to the actual pallet volume - less wear and tear with longer, trouble-free operation.

All modules

That's not all.
Our machines already come with useful functions that make your work easier.

Made In Germany

Directly from the manufacturer: STREMA Machines are developed and manufactured in Germany.

Learn more

Module
Modules for special requirements

Basic model for pure load securing. Comprehensive basic equipment for all industries. Up to 90 pallets per hour.
Scissor hold-down device for securing unstable loads.
Version with hold-down device and integrated film clamping and cutting device – enables wrapping to begin and end at the top of the pallet.

High-performance, rotary-arm-based stretch wrapping system with two stretch heads. A second stretch head significantly increases performance and increases availability. If one head fails, the second head takes over. Up to 150 pallets per hour – the absolute top performance among rotary-arm pallet wrappers.

Implementation of dust and removal protection. The cover sheet applicator is available in two versions: as a continuous-feed cover sheet applicator and as a clamping system.
For ergonomic cover sheet changes without any effort.
Integrated topsheet applicator for rainproof packaging. The machine achieves a capacity of up to 80 pallets per hour in the weatherproof program.
Dual head with automatic film change system. Allows a range of 6 rolls without operator intervention, 4 rolls in the magazine, 2 rolls in the machine.
Basic variant Hold-down device B-Version Twin-head Upstream cover sheet applicator Cover sheet applicator with handling aid Internal cover sheet applicator Automatic film exchanging system
Basic variant

Basic model for pure load securing. Comprehensive basic equipment for all industries. Up to 90 pallets per hour.

Hold-down device

Scissor hold-down device for securing unstable loads.

B-Version

Version with hold-down device and integrated film clamping and cutting device – enables wrapping to begin and end at the top of the pallet.

Twin-head

High-performance, rotary-arm-based stretch wrapping system with two stretch heads. A second stretch head significantly increases performance and increases availability. If one head fails, the second head takes over. Up to 150 pallets per hour – the absolute top performance among rotary-arm pallet wrappers.

Upstream cover sheet applicator

Implementation of dust and removal protection. The cover sheet applicator is available in two versions: as a continuous-feed cover sheet applicator and as a clamping system.

Cover sheet applicator with handling aid

For ergonomic cover sheet changes without any effort.

Internal cover sheet applicator

Integrated topsheet applicator for rainproof packaging. The machine achieves a capacity of up to 80 pallets per hour in the weatherproof program.

Automatic film exchanging system

Dual head with automatic film change system. Allows a range of 6 rolls without operator intervention, 4 rolls in the magazine, 2 rolls in the machine.

All modules
Here you will find an overview of all equipment variants

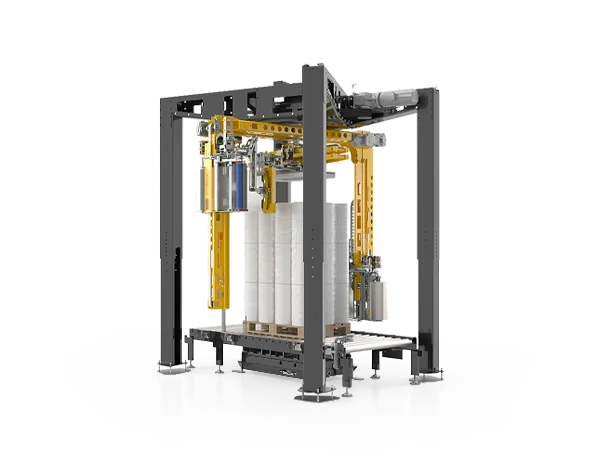

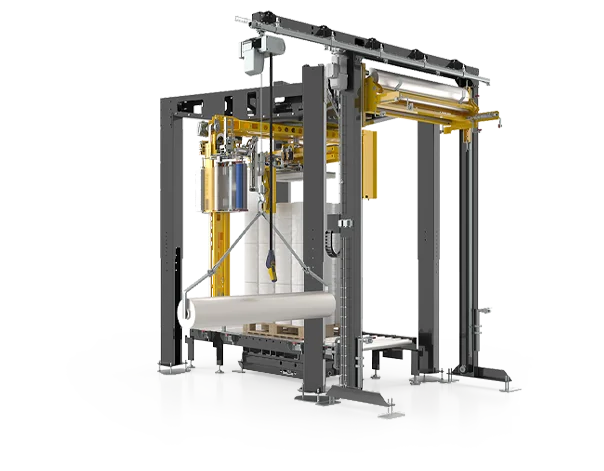

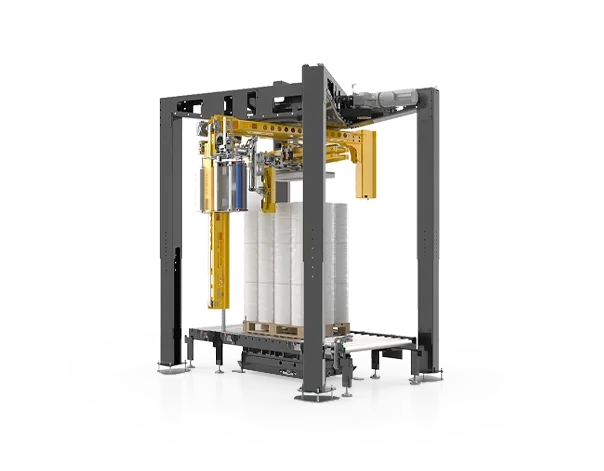

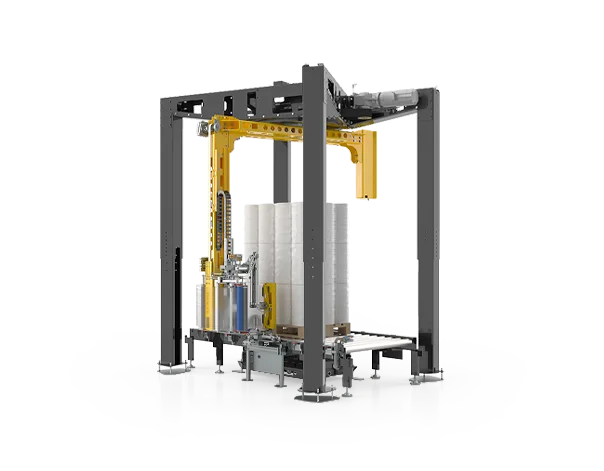

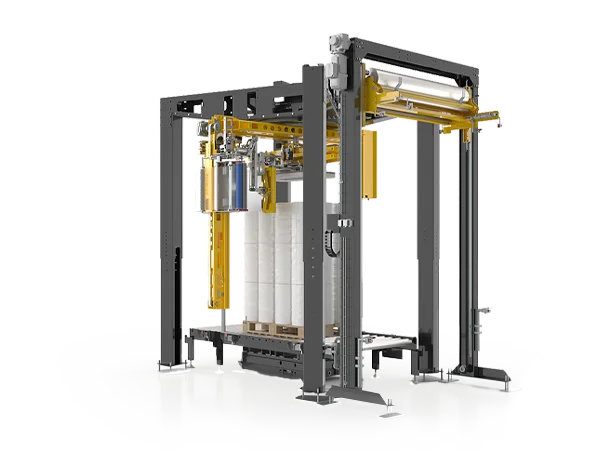

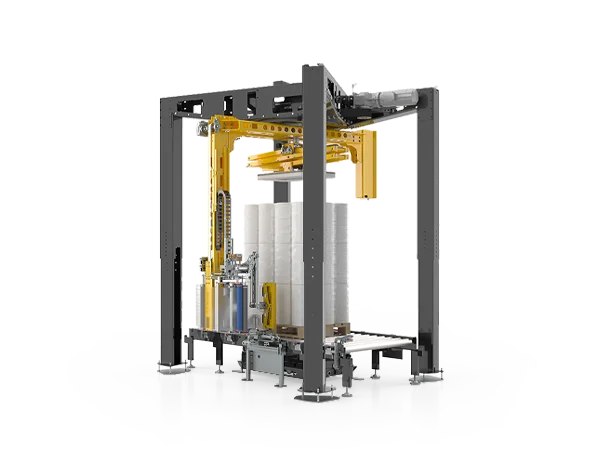

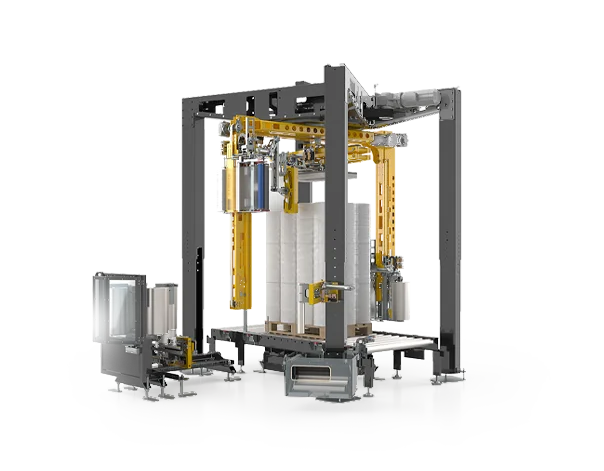

Basic model A 5000 with four-legged frame, internal yellow rotating arm with stretch head; underneath a pallet on a conveyor belt. Stretch wrapper A 5000 with hold-down device, a mechanism that secures the products on the pallet. Stretch wrapper A 5000, B-version, with hold-down device and a mechanism for cutting and clamping the film. Stretch machine A 5000 with two rotating arms and one stretch head each at the top and bottom of the pallet. Stretch machine A 5000 with a pre-positioned tower with top sheet applicator that places the sheet on the pallet before wrapping. Stretch machine A 5000 with top sheet applicator and rope pull for easy change of the top sheet film roll. A 5000 with integrated top sheet applicator that automatically places the sheet onto the pallet with the hold-down device. Stretch machine A 5000 with two stretch heads, hold-down device, and side-mounted film change system with roll magazine.

Basic version

90

90 pallets per hour

EFO 02 Smart Load

Film compression device

High-bay warehouse-safe welding of the film end

Excavation device

Automatic performance adjustment

Film consumption indicator

Maintenance and service control

Oversized pallets

hold-down device

A5000 B-Version

upstream cover sheet applicator dust and removal protection

Integrated cover sheet applicator Weatherproof

fully automatic edge protection feeder

fully automatic film changing system

Summer / winter program switching

variable winding distribution

Maintenance platform

Connection to BDE LDS system

Connection to BDE LDS system




Maximum equipment
Fully automatic rotation system with Fully automatic rotation system with

150

150 pallets per hour

2x EFO 02 Smart Load

Film compression device

High-bay safe welding of the film end

Excavation device

Automatic performance adjustment

Film consumption indicator

Maintenance and service control

Oversized pallets

hold-down device

A5000 B-Version

upstream cover sheet applicator dust and removal protection

Integrated cover sheet applicator Weatherproof

fully automatic edge protection feeder

fully automatic film changing system

Summer / winter program switching

variable winding distribution

Maintenance platform

Connection to BDE LDS system

Connection to BDE LDS system
